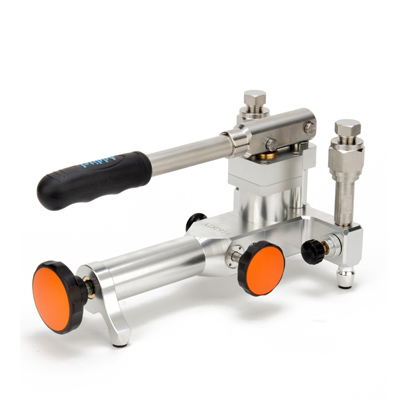

Additel 914A | Handheld Pneumatic Pressure Test Pump (Pneumatic Type, Air: -14 psi to 375 psi)

Additel 914A | Handheld Pneumatic Pressure Test Pump (Pneumatic Type, Air: -14 psi to 375 psi)

Features

  • Portable, only 3.3 lb
  • Great stability and high resolution
  • Minimal maintenance
  • Hand-tight quick connectors

Applications
The Additel 914A Pneumatic Pressure Test Pump is designed to generate pressure from 95% vacuum to 375 psi (25 bar) for the application requiring accurate pressure testing and calibration. It can be used in calibrating pressure gauges, transmitters, or other pressure measuring instruments.

Category: Brand:

Description

The 914A Pneumatic Pressure Test Pump is a hand operated pressure pump designed to generate pressure from 95% vacuum to 375psi (25bar). A high-quality screw press is designed for fine pressure adjustment, with an adjustment resolution up to10 Pa (0.1 mbar). A specially designed shut-off valve makes the pressure as stable as possible during calibration. A built-in gas-liquid isolator protects the pump from moisture and dirt to reduce the need for maintenance. Two hand-tight quick connectors installed on the pump allow easy connecting and disconnecting to the test pump without the need for PTFE tape or wrenches. The 914A is an ideal comparison test pump for pressure instruments calibration.

Product Specification
